Unofficial File parts/78522p02.dat
Part Attributes:
Base Part: 78522.dat
File Header:

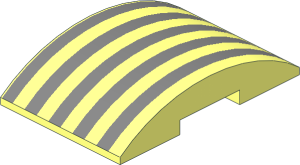

0 Slope Brick Curved 6 x 4 Double with Silver Stripes Pattern
0 Name: 78522p02.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Fire engine, grill, Inside Tour, Set 4000040
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\78522s01.dat
1 16 32 68.2828 0 0 8 0 -68.2828 0 0 0 0 -84.8536 48\1-8cyli.dat
1 16 32 68.2828 0 0 8 0 -68.2828 0 0 0 0 84.8536 48\1-8cyli.dat
1 80 24 68.2828 0 0 8 0 -68.2828 0 0 0 0 -84.8536 48\1-8cyli.dat
1 80 24 68.2828 0 0 8 0 -68.2828 0 0 0 0 84.8536 48\1-8cyli.dat
1 16 16 68.2828 0 0 8 0 -68.2828 0 0 0 0 -84.8536 48\1-8cyli.dat
1 16 16 68.2828 0 0 8 0 -68.2828 0 0 0 0 84.8536 48\1-8cyli.dat
1 80 8 68.2828 0 0 8 0 -68.2828 0 0 0 0 -84.8536 48\1-8cyli.dat
1 80 8 68.2828 0 0 8 0 -68.2828 0 0 0 0 84.8536 48\1-8cyli.dat
1 16 0 68.2828 0 0 8 0 -68.2828 0 0 0 0 -84.8536 48\1-8cyli.dat
1 16 0 68.2828 0 0 8 0 -68.2828 0 0 0 0 84.8536 48\1-8cyli.dat
1 80 -8 68.2828 0 0 8 0 -68.2828 0 0 0 0 -84.8536 48\1-8cyli.dat
1 80 -8 68.2828 0 0 8 0 -68.2828 0 0 0 0 84.8536 48\1-8cyli.dat
1 16 -16 68.2828 0 0 8 0 -68.2828 0 0 0 0 -84.8536 48\1-8cyli.dat
1 16 -16 68.2828 0 0 8 0 -68.2828 0 0 0 0 84.8536 48\1-8cyli.dat
1 80 -24 68.2828 0 0 8 0 -68.2828 0 0 0 0 -84.8536 48\1-8cyli.dat
1 80 -24 68.2828 0 0 8 0 -68.2828 0 0 0 0 84.8536 48\1-8cyli.dat
1 16 -32 68.2828 0 0 8 0 -68.2828 0 0 0 0 -84.8536 48\1-8cyli.dat
1 16 -32 68.2828 0 0 8 0 -68.2828 0 0 0 0 84.8536 48\1-8cyli.dat
1 80 -39 68.2828 0 0 7 0 -68.2828 0 0 0 0 -84.8536 48\1-8cyli.dat
1 80 -39 68.2828 0 0 7 0 -68.2828 0 0 0 0 84.8536 48\1-8cyli.dat
1 16 -40 68.2828 0 0 1 0 -68.2828 0 0 0 0 -84.8536 48\1-8cyli.dat
1 16 -40 68.2828 0 0 1 0 -68.2828 0 0 0 0 84.8536 48\1-8cyli.dat
Status:
Needs 1 More Vote (CN)
This part has the following warnings
- Decimal precision exceeds normal specification for part type
Current Votes:
| User | Vote |
|---|---|
| Philo | Certify |
Official parents and subparts
Part Events:
2025-12-29 21:37:58
Yes, I'd let a margin of 0.5 to 1 LDU all around. Also, according to this photo, top stripe is narrower than the other ones
https://img.bricklink.com/ItemImage/SN/0/4000040-1.png
https://img.bricklink.com/ItemImage/SN/0/4000040-1.png
2025-12-29 22:18:55
all around would mean to use 5-48 and have the last row made of quads, only the top margin is easier with just an additional cyli row
-> which one?
-> which one?
2025-12-30 09:48:13
Yeah, I feel the problem ;) Let's say on top only, making the silver line a tad thinner.
withe 1LDU margin to the top (found better pics, seems like the stripes are indeed to the slope end)
2025-12-30 12:26:12
Creative Commons Attribution License information
This part is copyright © Rene Rechthaler
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
should it include a border around? or would it be ok to only include one at the top? (how wide?)
